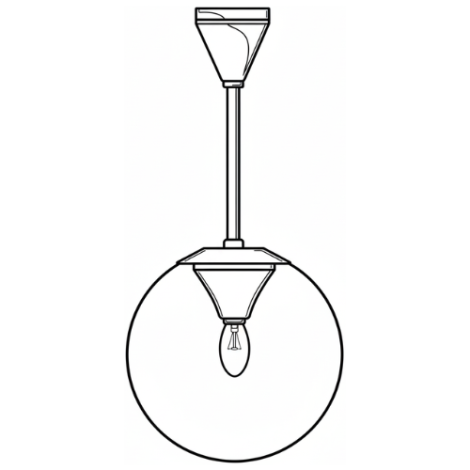

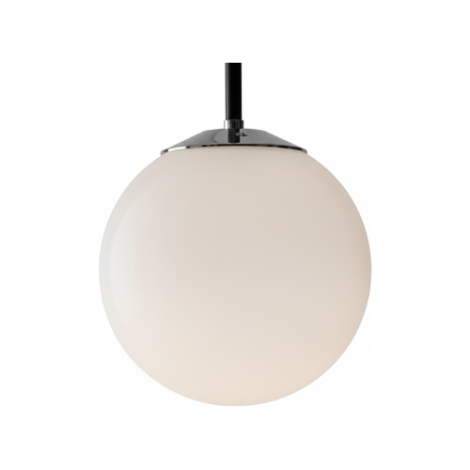

Pendant Sphere

Specification

  • Body base in die cast aluminium
  • Ceiling Canopy in Spun aluminium
  • 25mm dia suspension rod
  • Sphere’s either Opal polyethylene or clear-smoke acrylic (PMMA)
  • Integral control gear
  • Stainless steel fixings
  • Clear and Smoke acrylic version with polished control gear cone
  • Powdercoat finish on metalware Standard White
  • Non standard powdercoat and chrome or gold plating on request

Accessory

  • CL/IPL – Internal polished mirror inverted louvre assembly (Please order separately
  • CL/SCC – Slope Ceiling Canopy (Please order separately)
  • CL/AR – Additional rod lenght to standard 1 metre lenght supplied(please nominate)

Applications

  • Churches
  • Halls
  • Shopping centres
  • Schools
  • Community Areas
Category:

Description

Pendant mounted spheres can be supplied with either rod or cord suspension kits and are available in opal, smoke or clear spheres. Metalware in powdercoated in standard White finish. Standard rod length is 1 metre although suspension rods can be manufactured to nominated length.

Catalogue NumberDiameterVisorMaxWattage
CL7125250mmOpal40w
CL7130300mmOpal, Clear. Smoke50w
CL7135350mmOpal, Clear. Smoke80w
CL7240400mmOpal, Clear. Smoke125w
CL7245450mmOpal, Clear. Smoke150w
CL7250500mmClear. Smoke150w
CL7250500mmOpal, Clear. Smoke250w
CL7255550mmOpal250w
CL7390900mmOpal400w
Control Gear Available
Mercury Vapour50w, 80w, 125w, 250w
High Pressure Sodium50w, 70w, 150w, 250w
Metal Halide70w, 100w, 150w, 250w
PL7w, 9w, 11w + Multiples x2, x3, x4
PLC13w, 18w, 26w+multiples x2,x3,x4
