Mirror Reflector Sphere Large

Specification

  • Body in die cast aluminium
  • Visor in either smoke or clear polycarbonate
  • Integral control gear
  • Polished mirror louvre & gear cone in 99.9 pure aluminium
  • Stainless steel fixings
  • Pole adaptor can be varied from 60mm – 76mm or 89mm Standard size is 76mm diameter
  • Powdercoat colour (Standard) Black

Applications

  • Schools
  • Landscape Areas
  • Car Parks
  • Shopping Centres
  • Driveways – Minor Roads
Category:

Description

Post mounted Polycarbonate sphere incorporating a polished aluminium mirror refractor, which reduces glare from the lamp source and gives good downward light distribution. The mirror refractor is suitable for higher wattage lamps from 70watt to 250watt Also available with LED E27 lamps . Spigot sizes 60mm, 76mm and 89mm.

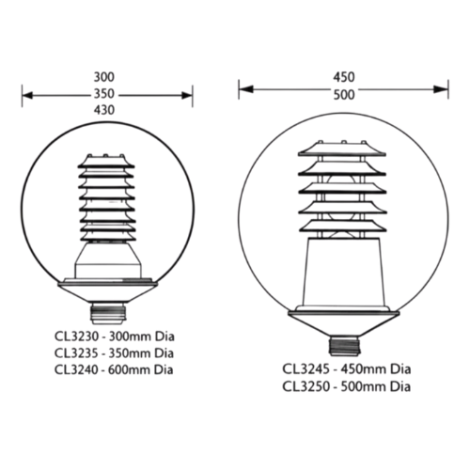

Catalogue NumberDiameterLouvreMax Wattage
CL3240400mmLarge125watt
CL3245450mmLarge150watt
CL3250500mmLarge250watt
Control Gear Available
LED 10w, 15w, 25w, 35w E27 360 degree 6K lamp
Mercury Vapour50w, 80w, 125w, 250w
High Pressure Sodium50w, 70w, 150w, 250w
Metal Halide70w, 100w, 150w
PL7w, 9w, 11w
PLC13w, 18w, 26w + multiples x 2
